A new device called the Argus II has been implanted in over 50 patients, many of whom can now see color, movement and objects and researchers have even streamed braille patterns directly into a blind patient's retina, allowing him to read four-letter words accurately and quickly with the ocular neuroprosthetic device.

Argus II uses a small camera mounted on a pair of glasses, a portable processor to translate the signal from the camera into electrical stimulation and a microchip with electrodes implanted directly on the retina.

Similar in concept to successful cochlear implants, the visual implant uses a grid of 60 electrodes—attached to the retina—to stimulate patterns directly onto the nerve cells. For this study, the researchers at Second Sight used a computer to stimulate six of these points on the grid to project the braille letters. A series of tests were conducted with single letters as well as words ranging in length from two letters up to four. The patient was shown each letter for half a second and had up to 80% accuracy for short words.

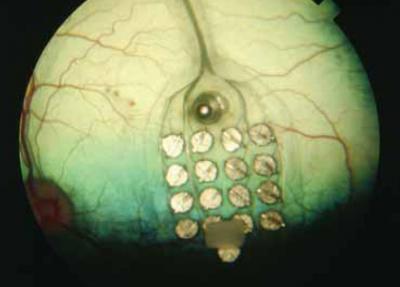

Argus II and the grid of electrons directly implanted on the retina. Credit: Second Sight

"In this clinical test with a single blind patient, we bypassed the camera that is the usual input for the implant and directly stimulated the retina. Instead of feeling the braille on the tips of his fingers, the patient could see the patterns we projected and then read individual letters in less than a second with up to 89% accuracy," explains researcher Thomas Lauritzen, lead author of the paper. "There was no input except the electrode stimulation and the patient recognized the braille letters easily. This proves that the patient has good spatial resolution because he could easily distinguish between signals on different, individual electrodes."

 The study was authored by researchers at Second Sight, the company who developed the device, and has been published in Frontiers in Neuroprosthetics.

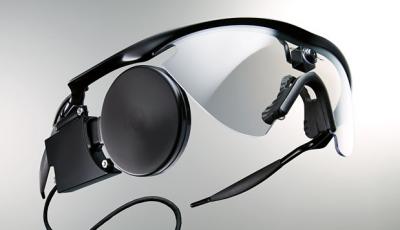

Argus II retinal implant device headset. Credit: Second Sight
