Researchers have developed a new concept for a microscope that would use neutrons,  subatomic particles with no electrical charge,
to create high-resolution images
instead of the more traditional beams of light or electrons.

Among other benefits, neutron-based instruments have the ability to probe inside metal objects, such as fuel cells, batteries, and engines, even when in use, and learn details of their internal structure. Neutron instruments are also uniquely sensitive to magnetic properties and lighter elements that are important in biological materials.

Adapting a 60-year-old concept for a way of focusing X-rays using mirrors met the challenge of building a high-performing neutron microscope. Until now, most neutron instruments have been akin to pinhole cameras: crude imaging systems that simply let light through a tiny opening. Without efficient optical components, such devices produce weak images with poor resolution.

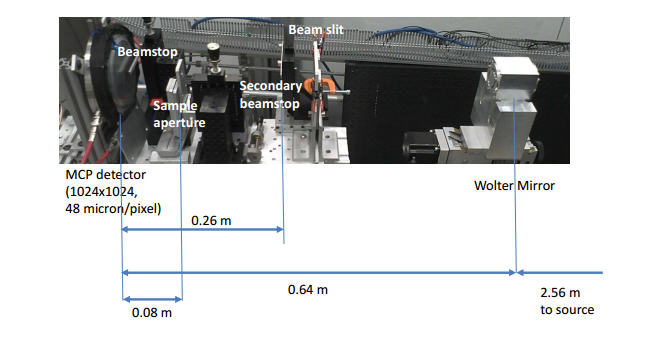

Photograph of a section of the SANS set-up. Only the part between the mirrors and the detector is shown, with corresponding distances marked. The detector, the beam stop, the sample aperture, and the mirrors are shown. Additional beam slit and the secondary beamstop were installed to reduce the background from neutrons that were not scattered by both ellipsoid and hyperboloid. The mirrors, the sample aperture and the beam stop were aligned with the help of goniometers and precision stages. Credit:
doi:10.1038/ncomms3556

Beyond the pinhole

"For neutrons, there have been no high-quality focusing devices," said project supervisor David Moncton. "Essentially all of the neutron instruments developed over a half-century are effectively pinhole cameras." But with this new advance, he says, "We are turning the field of neutron imaging from the era of pinhole cameras to an era of genuine optics."

"The new mirror device acts like the image-forming lens of an optical microscope," first author Dazhi Liu added.

Because neutrons interact only minimally with matter, it's difficult to focus beams of them to create a telescope or microscope. But a basic concept was proposed, for X-rays, by Hans Wolter in 1952 and later developed by NASA for telescopes such as the orbiting Chandra X-ray Observatory . Neutron beams interact weakly, much like X-rays, and can be focused by a similar optical system.

It's well known that light can be reflected by normally nonreflective surfaces, so long as it strikes that surface at a shallow angle; this is the basic physics of a desert mirage. Using the same principle, mirrors with certain coatings can reflect neutrons at shallow angles.

A sharper, smaller device

The actual instrument uses several reflective cylinders nested one inside the other, so as to increase the surface area available for reflection. The resulting device could improve the performance of existing neutron imaging systems by a factor of about 50, the researchers say — allowing for much sharper images, much smaller instruments, or both.

The team initially designed and optimized the concept digitally, then fabricated a small test instrument as a proof-of-principle and demonstrated its performance using a neutron beam facility at MIT's Nuclear Reactor Laboratory. Later work, requiring a different spectrum of neutron energies, was carried out at Oak Ridge National Laboratory (ORNL) and at the National Institute of Standards and Technology (NIST).

Such a new instrument could be used to observe and characterize many kinds of materials and biological samples; other nonimaging methods that exploit the scattering of neutrons might benefit as well. Because the neutron beams are relatively low-energy, they are "a much more sensitive scattering probe," Moncton says, for phenomena such as "how atoms or magnetic moments move in a material."

The researchers next plan to build an optimized neutron-microscopy system in collaboration with NIST, which already has a major neutron-beam research facility. This new instrument is expected to cost a few million dollars.

Moncton points out that a recent major advance in the field was the construction of a $1.4 billion facility that provides a tenfold increase in neutron flux. "Given the cost of producing the neutron beams, it is essential to equip them with the most efficient optics possible," he says.

Dazhi Liu, Boris Khaykovich, Mikhail V. Gubarev, J. Lee Robertson, Lowell Crow, Brian D. Ramsey& David E. Moncton, 'Demonstration of a novel focusing small-angle neutron scattering instrument equipped with axisymmetric mirrors', Nature Communications 4, Article number: 2556 doi:10.1038/ncomms3556
