Pentamodes, proposed in 1995 by Graeme Milton and Andrej Cherkaev, have been purely theoretical but three-dimensional transformation acoustics ideas, for example inaudibility cloaks, acoustic prisms or new loudspeakers, could become reality in the near future.

The mechanical behavior of materials like water (or even gold) is expressed in terms of compression and shear parameters. For examples, water as an incompressible fluid that can barely be compressed in a cylinder is described through the compression parameter, but that it can be stirred in all directions using a spoon is expressed through the shear parameters.

Penta, as in pentamodes, is derived from ancient Greek and means "five". In the case of water, the five shear parameters equal zero, and only one parameter, compression, differs from that value. In terms of parameters, the ideal state of a pentamode metamaterial corresponds to the state of water, which is why that material is referred to as a metafluid. Theoretically, any conceivable mechanical properties whatsoever can be obtained by varying the relevant parameters.

Cool, right?

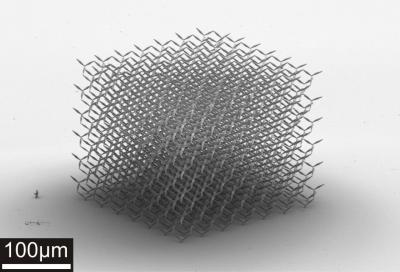

Pentamode metamaterials almost behave like fluids. Their manufacture opens new possibilities in transformation acoustics. Credit: Source: CFN, KIT

Sure. But not achievable yet.

"Realizing a pentamode metamaterial is about as difficult as trying to build a scaffold from pins that must not touch but at their tips," said first author Dr. Muamer Kadic. "The Karlsruhe prototype has been manufactured from a polymer. The mechanical behavior of the material is determined by the acuteness and length of the individual "sugar loaves". On the one hand, we must be capable of designing small sugar loaves in the nanometer range and connect them to one another at the right angle. On the other hand, the entire structure must eventually become as large as possible. Since the material itself contributes only little more than one percent to the respective volume, the composite obtained is extremely light."

"To obtain similar 3D results, as in transformation optics, transformation acoustics is exclusively dependent on metamaterials. In view of this, this first manufacture of our pentamode metamaterial is a quite significant success," adds Tiemo Bückmann, responsible for realizing the structures of the new material by means of dip-in laser writing, a method that has been derived from direct laser writing developed by the Nanoscribe company.

In recent years, a Professor at the Institute of Applied Physics and CFN coordinator, Martin Wegener and his collaborators, have developed direct laser writing and, based on that method, established optical lithography of three-dimensional nanostructures. Numerous achievements of c's group in transformation optics e.g., the first three-dimensional cloak of invisibility in the range of visible light, have been due to that technique.
