In Lewis Caroll's novel "Alice in Wonderland", the Cheshire Cat could disappear but its grin remained.  Why? Who knows? Like dogs named Checkers and Esther Williams swimming pools, things don't always make sense. Scientifically, that cat was an object separated from its properties - it was a quantum cat.

In quantum physics, particles can be in different physical states at the same time. If, for example, a beam of neutrons is divided into two beams using a silicon crystal, it can be shown that the individual neutrons do not have to decide which of the two possible paths they choose. Instead, they can travel along both paths at the same time in a quantum superposition: the neutrons travel along a different path than one of their properties – their magnetic moment.

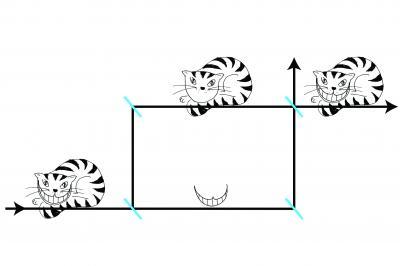

Lke a cat moving on a different path than its own grin, in an interferometer an object is separated from one if its properties. Credit: TU Vienna / Leon Filter

At Different Places at Once

"This experimental technique is called neutron interferometry," says Professor Yuji Hasegawa from the Vienna University of Technology. "It was invented here at our institute in the 1970s, and it has turned out to be the perfect tool to investigate fundamental quantum mechanics."

To see if the same technique could separate the properties of a particle from the particle itself, Hasegawa brought together a team to develop a brand new quantum experiment. The experiment was done at the neutron source at the Institut Laue-Langevin (ILL) in Grenoble, where a unique kind of measuring station is operated.

Where is the Cat …?

Neutrons are not electrically charged, but they carry a magnetic moment. They have a magnetic direction, the neutron spin, which can be influenced by external magnetic fields.

First, a neutron beam is split into two parts in a neutron interferometer. Then the spins of the two beams are shifted into different directions: The upper neutron beam has a spin parallel to the neutrons' trajectory, the spin of the lower beam points into the opposite direction. After the two beams have been recombined, only those neutrons are chosen, which have a spin parallel to their direction of motion. All the others are just ignored. "This is called postselection," says Hermann Geppert. "The beam contains neutrons of both spin directions, but we only analyze part of the neutrons."

These neutrons, which are found to have a spin parallel to its direction of motion, must clearly have traveled along the upper path - only there, the neutrons have this spin state. This can be shown in the experiment. If the lower beam is sent through a filter which absorbs some of the neutrons, then the number of the neutrons with spin parallel to their trajectory stays the same. If the upper beam is sent through a filter, than the number of these neutrons is reduced.

 Tobias Denkmayr, working on the experiment in Grenoble. Credit: TU Vienna

… and Where is the Grin?

Things get tricky, when the system is used to measure where the neutron spin is located: the spin can be slightly changed using a magnetic field. When the two beams are recombined appropriately, they can amplify or cancel each other. This is exactly what can be seen in the measurement, if the magnetic field is applied at the lower beam – but that is the path which the neutrons considered in the experiment are actually never supposed to take. A magnetic field applied to the upper beam, on the other hand, does not have any effect.

"By preparing the neurons in a special initial state and then postselecting another state, we can achieve a situation in which both the possible paths in the interferometer are important for the experiment, but in very different ways," says Tobias Denkmayr. "Along one of the paths, the particles themselves couple to our measurement device, but only the other path is sensitive to magnetic spin coupling. The system behaves as if the particles were spatially separated from their properties."

High Hopes for High-Precision Measurements

This counter intuitive effect is very interesting for high precision measurements, which are very often based on the principle of quantum interference. "When the quantum system has a property you want to measure and another property which makes the system prone to perturbations, the two can be separated using a Quantum Cheshire Cat, and possibly the perturbation can be minimized," says Stephan Sponar.

The idea of the Quantum Cheshire Cat was first discovered by Prof. Yakir Aharonov and first published by Aharonov's collaborator, Prof. Jeff Tollaksen (both of Chapman University) in 2001. The measurements which have now been presented are the first experimental proof of this phenomenon.

The crucial part of the experiment is: a crystal which splits the neutron beam into two parts and recombines them. Credit: TU Vienna
