Scientists say that using data from the Mars Express mission and numerical models they can determine how the orbit of Mars around the Sun accounts for the origin and perennial occurrence of water ice at the Martian South Pole.

The OMEGA instrument on board Mars Express had already found previously undetected perennial deposits of water-ice sitting on top of million-year old layered terrains and those provided strong evidence for recent glacial activity.


The OMEGA instrument on board ESA’s Mars Express has characterised the types of ice deposits present in the South polar cap of Mars as the arrows, superimposed on an image taken by the HRSC instrument, indicate. Credits: ESA - DLR - FU Berlin (G. Neukum)

But a realistic explanation for the age of the deposits and the mechanism of their formation was determined just recently.

The mapping and spectral analysis by OMEGA has shown that the perennial deposits on the Martian South Pole are of essentially three types: water-ice mixed with carbon dioxide (CO2) ice, tens-of-kilometres-wide patches of water-ice, and deposits covered by a thin layer of CO2 ice.

The discovery of the ice deposits of the first type confirms the long-standing hypothesis that CO2 acts as a cold-trap for water-ice. But how were the other two types of deposits, not ‘trapped’ by CO2, accumulated and preserved over time?

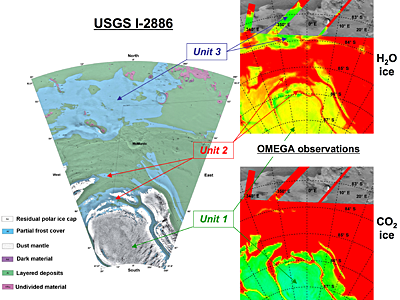

The OMEGA instrument on board ESA’s Mars Express has shown that the perennial deposits on the Martian South Pole are of essentially three types (referred to as ‘units’ in this image): water-ice mixed with carbon dioxide (CO2) ice, tens-of-kilometres-wide patches of water-ice, and deposits covered by a thin layer of CO2 ice. Credits: Left: USGS; Right: OMEGA team - F.Montmessin - Service d'Aéronomie du CNRS - IPSL

Franck Montmessin, from the Service d'Aéronomie du CNRS/IPSL (France) and lead author of the findings, explains how the deposits of water ice at the Martian's poles 'behave'. "We believe that the deposits of water-ice are juggled between Mars’ North and South Poles over a cycle that spans 51 000 years, corresponding to the time span in which the planet's precession is inverted." Precession is the phenomenon by which the rotation axis of a planet wobbles.

Montmessin and colleagues came to the conclusion by turning back time in their Mars climate computer model. This was done by changing the precession together with other orbital information.

The scientists set the clock 21 000 years back, when the closest vicinity of the planet to the Sun corresponded to the northern summer – a situation opposite to that of today.


These images, generated thanks to Martian Global Climate Models (GCMs), provide a comparison between the water-ice accumulation rates in two different periods (present day and 21 500 years ago), corresponding to inversed planetary precession periods. Present-day map shows a net accumulation of water-ice only at the South Pole itself, where the existence of a CO2 cold-trap forces a local and permanent deposition of water-ice. In the inversed situation (21 500 years ago), the CO2 cold trap has been removed and the pattern of accumulation is only controlled by the precipitation/sublimation of water vapour on an annual average. Credits: OMEGA team - F.Montmessin - Service d'Aéronomie du CNRS - IPSL

The model has shown that water at the North Pole was in an unstable condition and was easily transported to the South Pole in the form of water vapour, to then re-condense and freeze on the surface. Up to 1 millimetre of water ice was deposited at the South Pole every year. After Mars has spent more than 10 000 years in that climatic configuration, this accumulation led to a layer up to 6-metre thick.

About 10 000 years ago the precession cycle was inverted, and started to return to its current configuration. Water-ice at the South Pole became unstable, and was forced to progressively return back to the North.

About 1000 years ago, by a not-yet-well explained trigger mechanism, the erosion of the water-ice deposits at the South pole was blocked as soon as layers of CO2 ice were deposited on the water-ice and trapped it, as OMEGA has observed them.


A scenario for the recent evolution of water ice at the South Pole of Mars, summarizing the sequence of events in the south polar region since the precession cycle of Mars was last inverted. At that time (1), water was extracted off the north polar cap and was deposited over the south layered terrains. The passage to present-day configuration (2), with inverted precession cycle, forced water to progressively return back to the North Pole. In a third act (3), the water-ice erosion process stopped as permanent CO2 ice slabs formed and kept water from subliming further. Credits: OMEGA team - F.Montmessin - Service d'Aéronomie du CNRS - IPSL

Mars is currently experiencing 'Southern summer' – that is, water ice is more likely to accumulate at the North Pole.

Source: 'On the origin of perennial water ice at the South Pole of Mars: a precession-controlled mechanism?', by F. Montmessin, R. M. Haberle, F. Forget, Y. Langevin, R. T. Clancy and J.-P. Bibring

Source: ESA
