The snow-laden region of Rupes Tenuis on the martian north pole got some images courtesy of ESA’s Mars Express orbiter. The images are centred around 81° north and 297° east and have a ground resolution of 41 m/pixel. They cover an area of about 44 000 km2, almost as large as the Netherlands.

Rupes Tenuis is located at the southern edge of the martian north polar cap, approximately 5500 km northeast of the Tharsis volcanic region.

At present, polar caps contain the largest water reservoir on the Red Planet. Recent data from the Mars Advanced Radar for Subsurface and Ionosphere Sounding (MARSIS) on board Mars Express has revealed that both polar ice caps are 3.5 km thick.

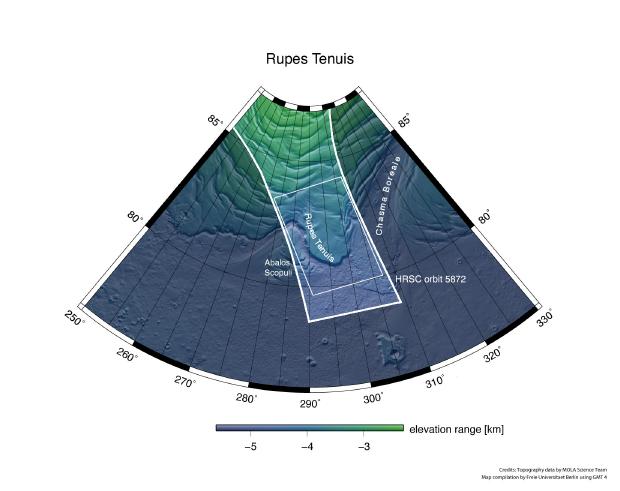

ESA’s Mars Express orbiter imaged the snow-laden region of Rupes Tenuis on the martian north pole on 29 July 2008. The map is centred at about 81° north and 297° east.   Rupes Tenuis is located at the southern edge of the martian north polar cap, approximately 5500 km northeast of the Tharsis volcanic region.   The area imaged is about 44 000 km2 in size, almost as large as the Netherlands.   Credits: FU Berlin/MOLA

The deep water-ice polar cap is covered by a layer of carbon dioxide ice that is centimetres to decimetres thick. During the warmer summer months, most of the carbon dioxide ice sublimates directly to vapor, and escapes into the atmosphere, leaving behind the harder water-ice layers.

Darker material, mostly dust, is brought in by the wind, and snow and ice are deposited in colder periods. This interplay between sedimentation and ice formation forms the Polar Layered Deposits visible clearly in the images.


Darker material, mostly dust, is brought in by the wind, and snow and ice are deposited in colder periods. This interplay between sedimentation and ice formation forms the Polar Layered Deposits visible clearly in the images (1).   An incision visible at top-centre of the image is more than 100 km long (2). Such curved incisions are common on the edges of the polar caps. Why such structures form is still not known. Chasma Borealis, visible on the right-hand side of the image, is one such incision.   Small, cone-shaped mounds (3) have long been interpreted as being volcanic in origin. New data suggest that some of the mounds may be remnants of older material that covered the area earlier. This material may have been more resistant to erosion, forming the mounds.   Credits: ESA/ DLR/ FU Berlin (G. Neukum)

An incision visible at top-centre of the image is more than 100 km long. Such curved incisions are common on the edges of the polar caps. Why such structures form is still not known. Chasma Borealis, visible on the right-hand side, is one such incision.

Small, conical mounds have long been interpreted as being volcanic in origin. New data suggest that some of the mounds may be remnants of older material that covered the area earlier. This material may have been more resistant to erosion, forming the mounds.

The color scenes have been derived from the three High Resolution Stereo Camera colour channels and the nadir channel. The perspective view has been processed from the digital terrain model derived from the stereo channels. The anaglyph image was calculated from the nadir and one stereo channel.
