While significant gaps remain in our total knowledge of the extent of carbon dioxide’s sources, such as fires, volcanic activity and the respiration of living organisms, and its natural sinks, such as the land and ocean, it is known that more than 30 billion tons of extra carbon dioxide (CO2) is released into the atmosphere annually by human activities, mainly through the burning of fossil fuels.

According to the latest report by the Intergovernmental Panel on Climate Change (IPCC), this increase is predicted to result in a warmer climate with rising sea levels and an increase of extreme weather conditions. Predicting future atmospheric CO2 levels requires an increase in our understanding of carbon fluxes.

Using data from the SCIAMACHY instrument aboard ESA's Envisat environmental satellite, scientists have for the first time detected regionally elevated atmospheric carbon dioxide – the most important greenhouse gas that contributes to global warming – originating from manmade emissions.

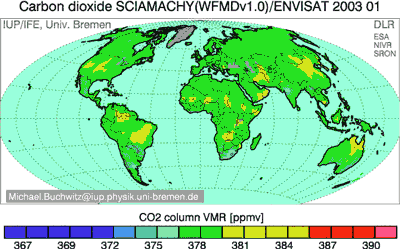

This animation of carbon dioxide (CO2) shows how our planet ‘breathes’. Each year huge amounts of CO2 are taken up by the growing vegetation in spring and summer and are to a large extent released again during the following autumn and winter when part of the vegetation dies and decays. This is seen in the animations by the up and down of the measured CO2 once per year. By looking carefully at the animation, it is possible to see that the CO2 levels are rising by about 0.5-1 percent from year to year. Dr. Michael Buchwitz and Oliver Schneising from the Institute of Environmental Physics (IUP) at the University of Bremen in Germany based produced this animation using Envisat SCIAMACHY observations from 2003 to 2005. Credits: IUP/IFE, Univ. Bremen

Dr Michael Buchwitz from the Institute of Environmental Physics (IUP) at the University of Bremen in Germany and his colleagues detected the relatively weak atmospheric CO2 signal arising from regional ‘anthropogenic’, or manmade, CO2 emissions over Europe by processing and analysing SCIAMACHY data from 2003 to 2005.

"The natural CO2 fluxes between the atmosphere and the Earth’s surface are typically much larger than the CO2 fluxes arising from manmade CO2 emissions, making the detection of regional anthropogenic CO2 emission signals quite difficult," Buchwitz explained.

"This does not mean, however, that the anthropogenic fluxes are of minor importance. In fact, the opposite is true because the manmade fluxes are only going in one direction whereas the natural fluxes operate in both directions, taking up atmospheric CO2 when plants grow, but releasing most or all of it again later when the plants decay. This results in higher atmospheric CO2 concentrations in the first half of a year followed by lower CO2 during the second half of a year with a minimum around August.

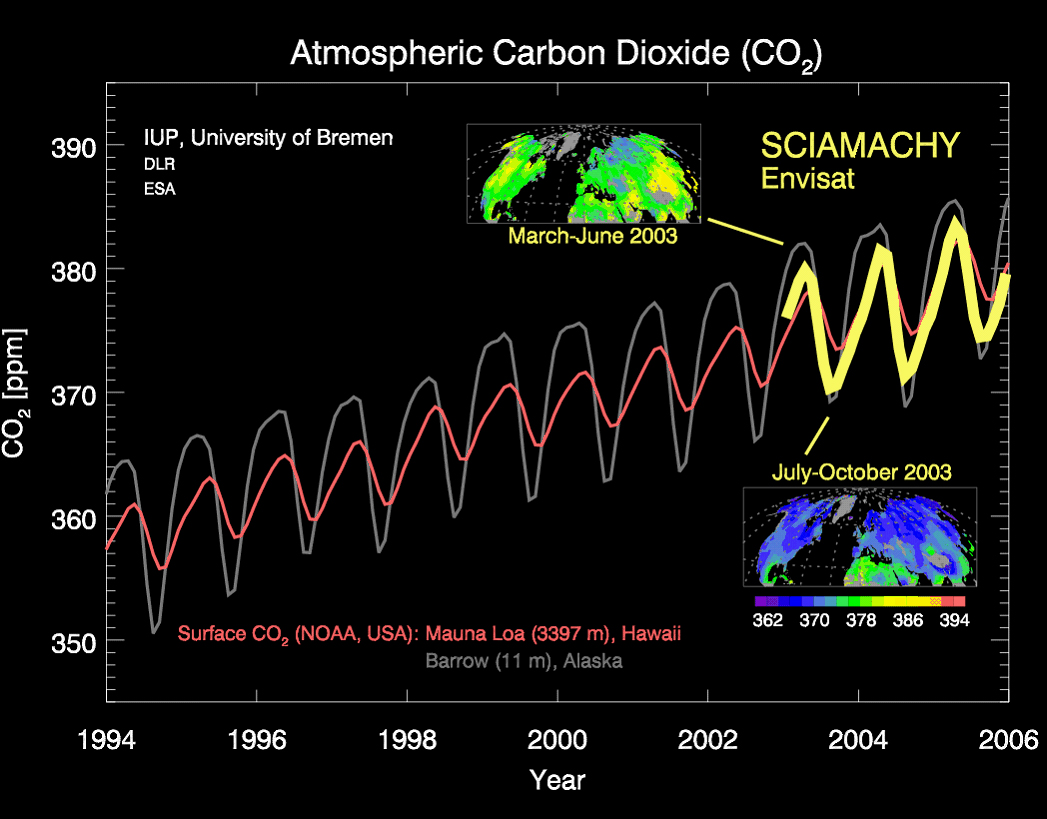

CLICK IMAGE FOR LARGER SIZE. CO2 measurements over the Northern Hemisphere obtained at the Earth’s surface (thin lines) from Envisat’s SCIAMACHY instrument (thick yellow line and two northern hemispheric maps). This figure highlights the natural fluxes of CO2 which, unlike manmade CO2 fluxes, operate in both directions – taking up atmospheric CO2 during spring and summer when plants grow, but releasing most or all of it again later in the year, when the plants decay. This results in higher atmospheric CO2 concentrations in the first half of a year followed by lower CO2 during the second half of a year with a minimum around August. Credits: ESA - DLR - IUP, Univ.Bremen

"That we are able to detect regionally elevated CO2 over Europe shows the high quality of the SCIAMACHY CO2 measurements."

Buchwitz says further analysis is required in order to draw quantitative conclusions in terms of CO2 emissions. "We verified that the CO2 spatial pattern that we measure correlates well with current CO2 emission databases and population density but more studies are needed before definitive quantitative conclusions concerning CO2 emissions can be drawn."

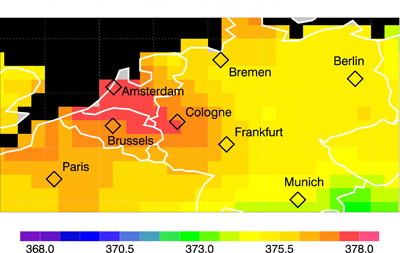

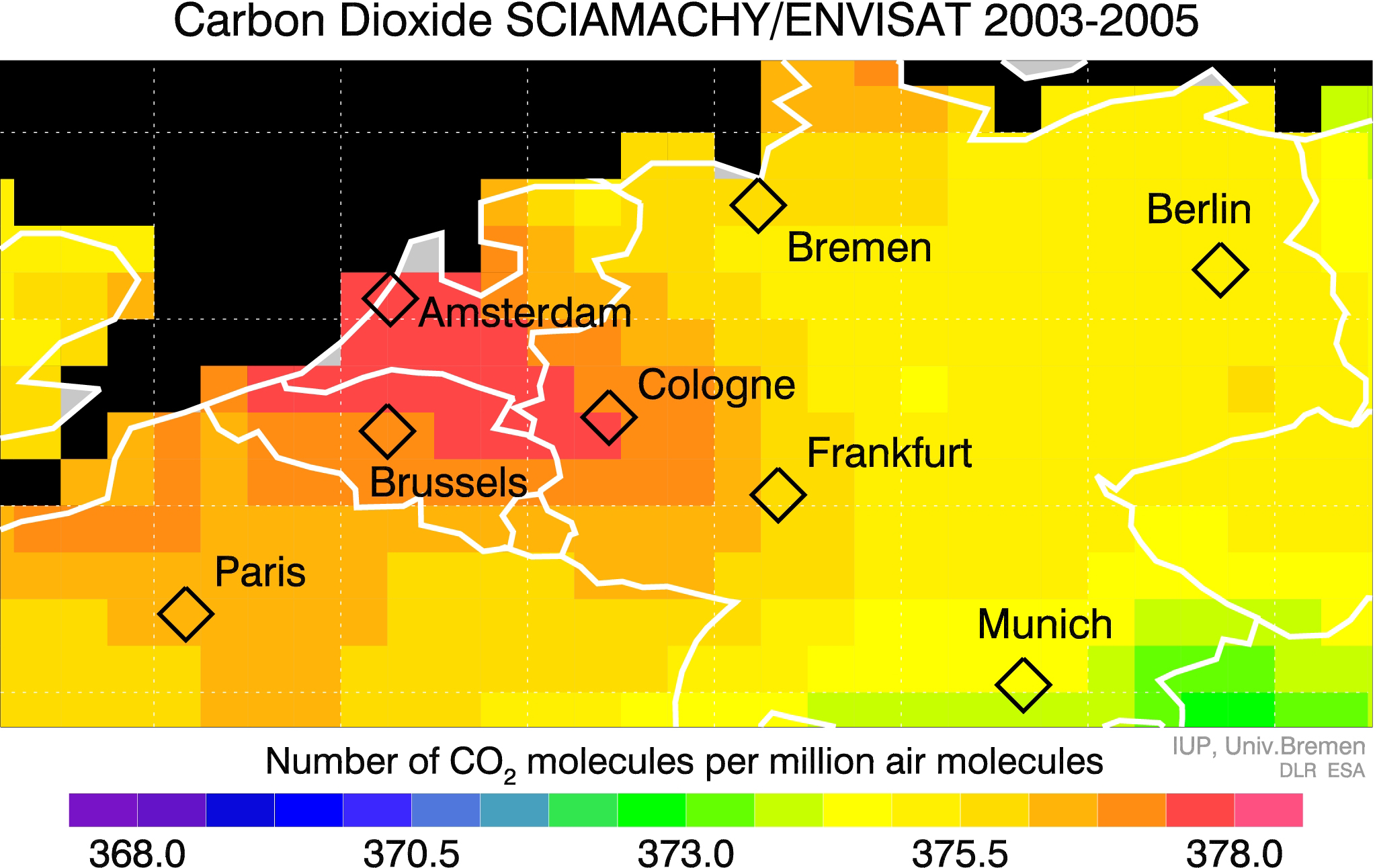

CLICK IMAGE FOR LARGER SIZE. Using data acquired from 2003-2005 by the SCIAMACHY instrument aboard ESA's Envisat environmental satellite, scientists have for the first time detected regionally elevated atmospheric carbon dioxide – the most important greenhouse gas that contributes to global warming – originating from manmade emissions. the findings show an extended plume over Europe’s most populated area, the region from Amsterdam in the Netherlands to Frankfurt, Germany. Credits: ESA - DLR - IUP, Univ.Bremen

"We know that about half of the CO2 emitted by mankind each year is taken up by natural sinks on land and in the oceans. We do not know, however, where exactly these important sinks are and to what extent they take up the CO2 we are emitting, i.e., how strong they are.

"We also don’t know how these sinks will respond to a changing climate. It is even possible that some of these sinks will saturate or turn into a CO2 source in the future. With our satellite measurements we hope to be able to provide answers to questions like this in order to make reliable predictions," Buchwitz said.

By better understanding all of the parameters involved in the carbon cycle, scientists can better predict climate change as well as better monitor international treaties aimed at reducing greenhouse gas emissions, such as the Kyoto Protocol which addresses the reduction of six greenhouse gases.

Last year, European Union leaders highlighted the importance of cutting emissions from these manmade gases by endorsing binding targets to cut greenhouse gases by at least 20 percent from 1990 levels by 2020.
