For years, researchers at MIT and Harvard University have been working on origami robots — reconfigurable machines that can fold themselves into arbitrary shapes.

In Science, they report their latest milestone, which is a robot made almost entirely from parts produced by a laser cutter that folds itself up and crawls away as soon as batteries are attached to it.

The robot is built from five layers of materials, all cut according to digital specifications by a laser cutter. The middle layer is copper, etched into an intricate network of electrical leads. It's sandwiched between two structural layers of paper; the outer layers are composed of a shape-memory polymer that folds when heated.

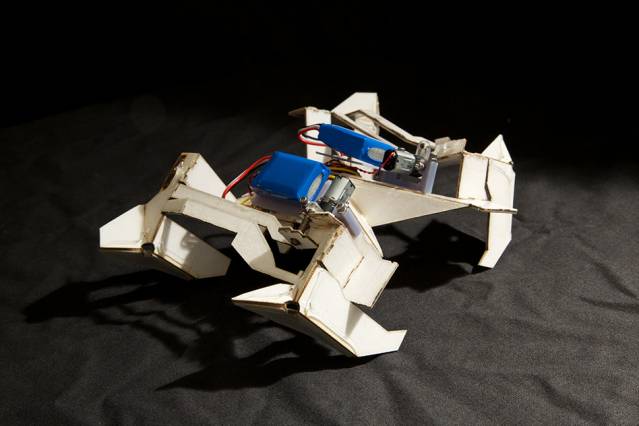

The self-folding mobile prototype developed by researchers at MIT and Harvard. Photo: Harvard’s Wyss Institute

After the laser-cut materials are layered together, a microprocessor and one or more small motors are attached to the top surface. In the prototype, that attachment was done manually, but it could instead be performed by a robotic "pick and place" system.

"The exciting thing here is that you create this device that has computation embedded in the flat, printed version," says Daniela Rus, the Andrew and Erna Viterbi Professor of Electrical Engineering and Computer Science at MIT and one of the Science paper's co-authors. "And when these devices lift up from the ground into the third dimension, they do it in a thoughtful way."

Rus is joined on the paper by Erik Demaine, an MIT professor of computer science and engineering, and by three researchers at Harvard's Wyss Institute for Biologically Inspired Engineering and School of Engineering and Applied Sciences: Sam Felton, Michael Tolley, and Rob Wood.

At the IEEE International Conference on Robotics and Automation this spring, Rus, Demaine, Wood, and five other researchers at MIT and Harvard presented a paper on bakable robots, which would self-assemble from laser-cut materials when uniformly heated. The new work is similar, but a network of electrical leads, rather than an oven or hot plate, delivers heat to the robot's joints to initiate folding.

The 2010 version could fold itself into an airplane or an origami boat. Video: Melanie Gonick; original footage: E. Hawkes/B. An/N.M. Benbernou/H. Tanaka/S. Kim/E.D. Demaine/D. Rus/R.J. Wood

"That's exciting from a geometry standpoint," Demaine says, "because it lets us fold more things. Because we can do the sequencing, we have a lot more control. And it lets us make active folding structures. Instead of just self-assembly, you can then make it walk."

"There is a magic sauce in the mechanical design that forms the leg system that can be actuated with one motor," Rus says.

In fact, while the researchers experimented with both single-motor and four-motor designs, the Science paper reports a design that uses two motors. Each motor controls two of the robot's legs; the motors are synchronized by the microprocessor. Each leg, in turn, has eight mechanical "linkages," and the dynamics of the linkages convert the force exerted by the motor into movement.

"It's called a one-degree-of-freedom structure, in which you just need to turn one crank and the whole thing moves in the way that you want," Demaine explains. "It lets you transfer just one degree of freedom into a whole complicated motion, all through the mechanics of the structure."

In prior work, Rus, Demaine, and Wood developed an algorithm that could automatically convert any digitally specified 3-D shape into an origami folding pattern. The design of the new robot was intended to demonstrate not only the possibility of motion generation, but also the ability to perform the two folds necessary to produce arbitrary shapes. "You need to be able to do a single fold, ideally all the way to 180 degrees, in both directions," Demaine says. "Then the next level of challenge is to do what's called a cyclic fold, where you have a bunch of panels connected together in a cycle, and they can all fold simultaneously. That's demonstrated in one component of the system."

The sharpest fold that the prototype system can execute is 150 degrees, not 180. But as Demaine explains, in origami, 180-degree folds are generally used to join panels together. With 150-degree folds, the panels won't quite touch, but that's probably tolerable for many applications.

In the meantime, Demaine is planning to revisit the theoretical analysis that was the basis of the researchers' original folding algorithm, to determine whether it's still possible to produce arbitrary three-dimensional shapes with folds no sharper than 150 degrees.

"It's very exciting because there is always work to be done between theory and devices," Rus says. "I make robots and love theory, and Erik proves theorems and loves mechanisms. In order for this research to work, you need people who are of the same mind about what is important."
